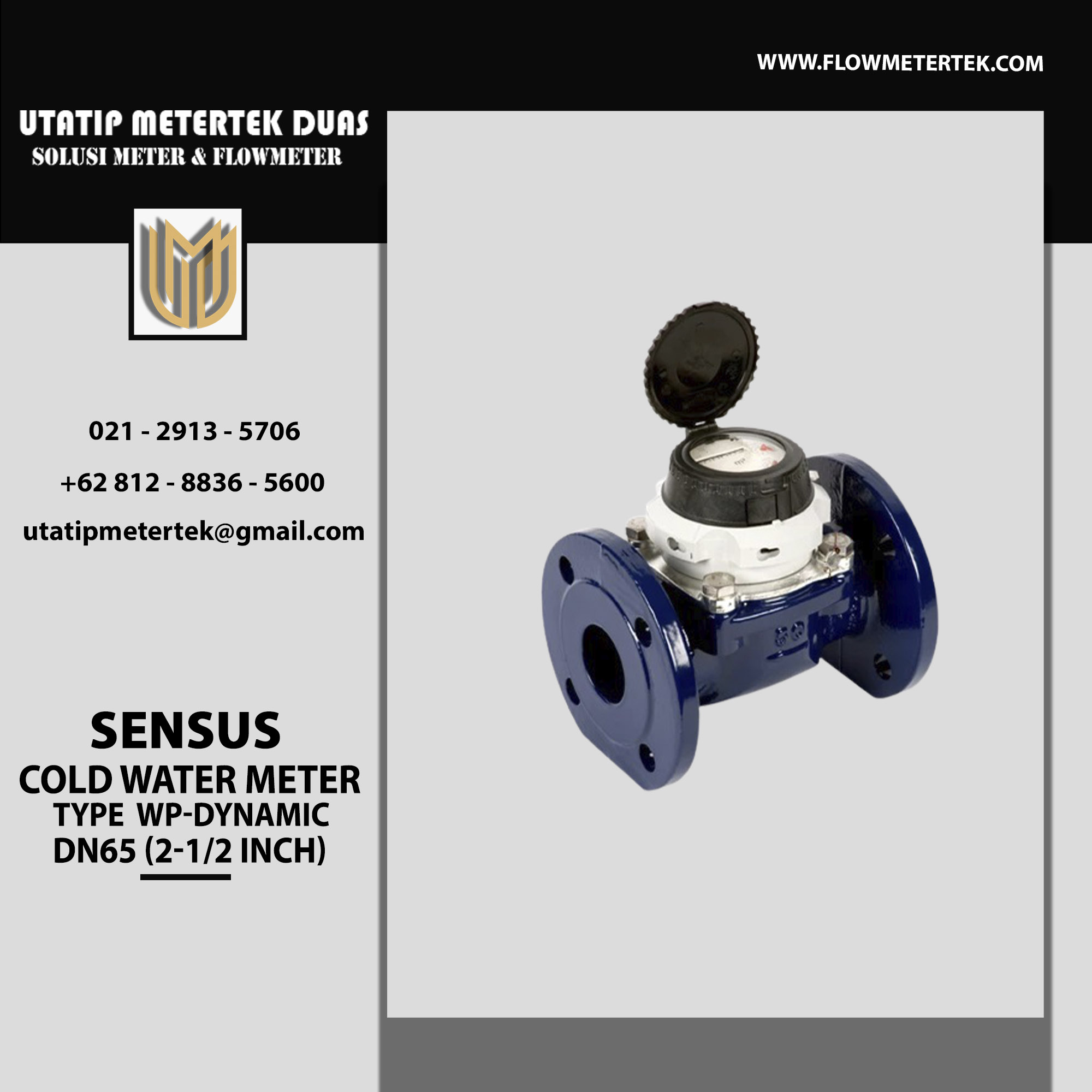

Sensus Cold Water Meter DN65 WP-Dynamic

SPECIFICATIONS :

Performance data WP-Dynamic 50 ºC

Nominal Diameter(DN) : 65mm (2-1/2″)
Max. peak flow (Qmax) : 120 m3/h
Continuous flow (Qn) : 70 m3/h
Transitional flow (Qt) : 0.8 m3/h
Min. flow (Qmin) : 0.40 m3/h
Starting flow : 0.20 m3/h

Performance data according to EEC-specification 30 ºC class B

Nominal Diameter(DN) : 65mm (2-1/2″)
Max. peak flow (Qmax) : 50 m3/h
Continuous flow (Qn) : 25 m3/h
Transitional flow (Qt) : 5.0 m3/h
Min. flow (Qmin) : 0.75 m3/h
Category:

Sensus Cold Water Meter DN65 WP-Dynamic



Sensus Cold Water Meter DN65 WP-Dynamic adalah alat pengukur arus air dingin, sensus water meter merupakan salah satu water meter terbaik dengan beberapa keunggulannya, salah satunya adanya sistem AMR *(pembacaan meter otomatis) dengan ini bertujuan untuk meningkatkan efisiensi saat mengumpulkan data meteran.

Special Features :

  • Measuring range better than metrological class C
  • Hermetically sealed register (IP 68)
  • Interchangeable measuring element
  • Register may be rotated through 360º
  • High overload capability
  • Pattern approved removable measuring element
  • Up to 3 pulsers (1 x OD, 2 x RD) may be fitted without breaking the approval seal
  • Powder coating ensures maximum corrosion protection
  • Not affected by external magnetic fields
  • Can be use as flow sensor for heat meters

Applications :

  • Measurement of high, relatively constant flow rates, e.g behind pumps.
